Fairey Swordfish(1/10) - Kit
Product number : Swo-1-10-Kit
Description
Kit for the 1/10 scale Fairey Swordfish designed by Robert Bishop from "RC Airplane Simplified"
- 1/10 Full size

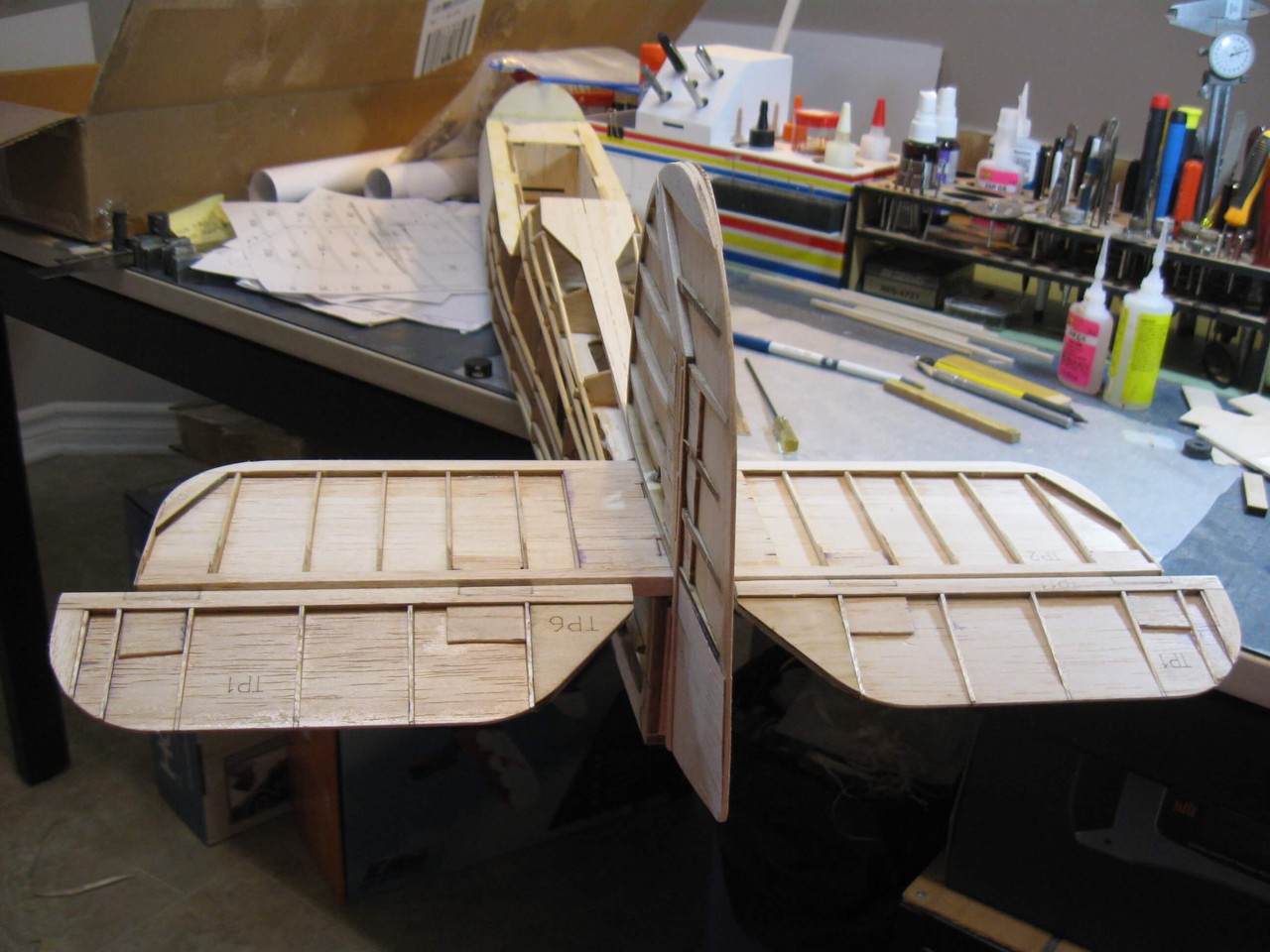

- Interlocking construction for the fuselage and wings
- Electric power
- Possible to convert to glow power
- Folding wings as per full size
- Balsa radial cowl.
The kit include :

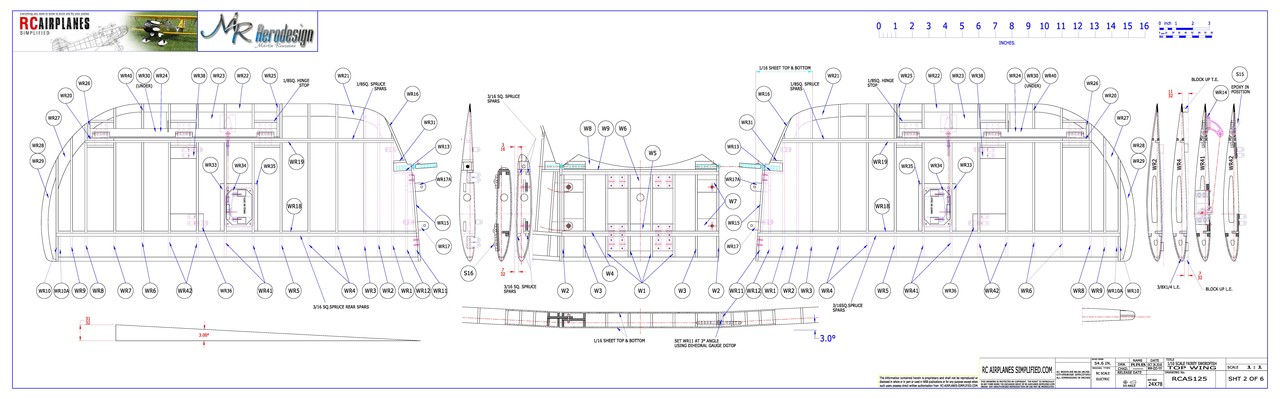

- 6 sheets of plan.
- All the wood required for the construction.

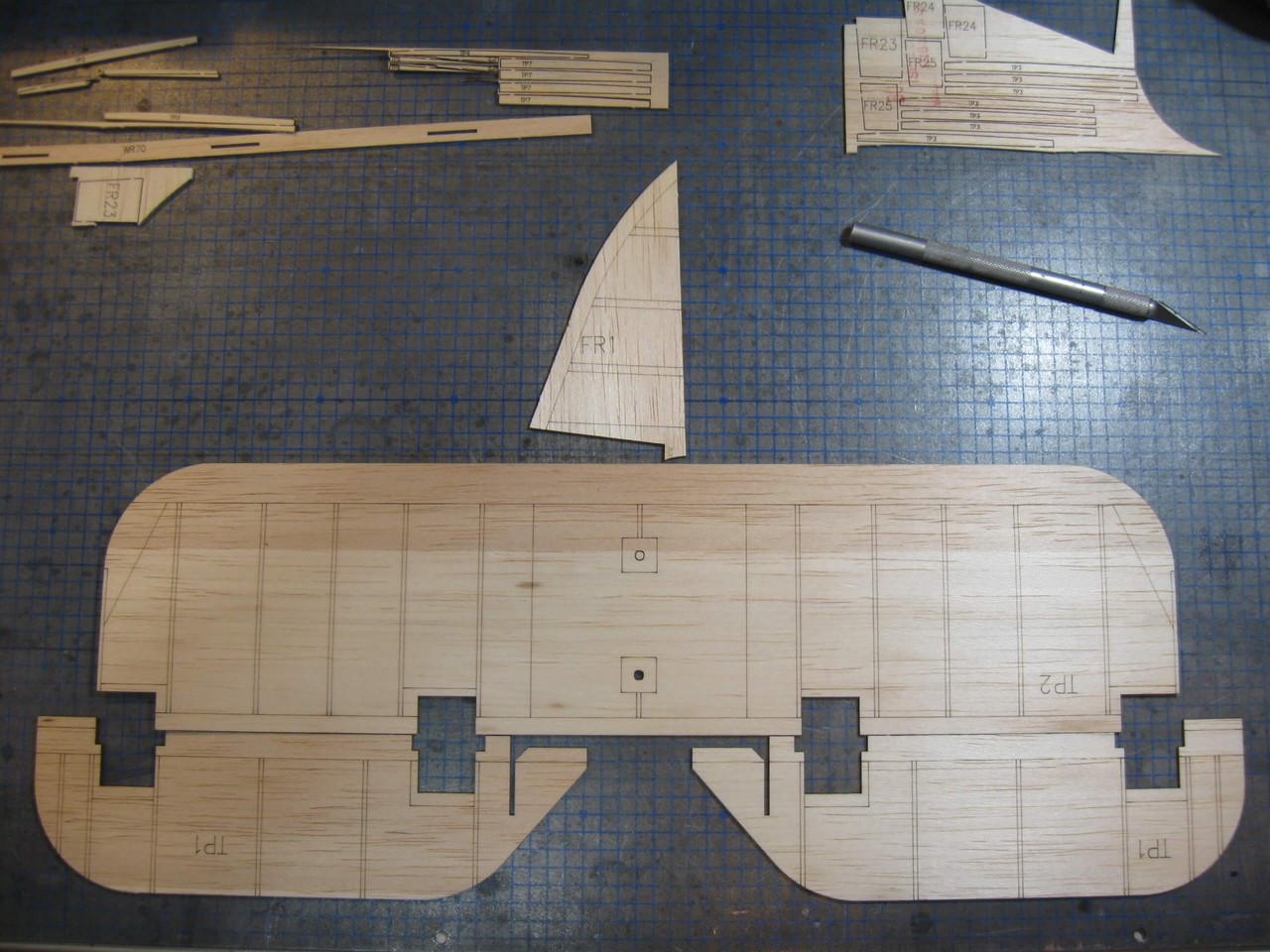

- Balsa and plywood laser cutted parts.
- All the hardware required.
Specifications
| Name | Value |
|---|---|
| Channel : | 4 min |
| Wing loading : | 21.39 oz/sq. ft. |
| Scale : | 1/10 |
| Wingspan : | 54.6" (1386.8mm) |
| Length : | 41.3" (1049mm) |
| Recommended engine : | 30-40 Glow |
| Electric power : | Power 32 or equiv. ESC : 60A ProSwitch BEC Brushless Lipo : 3300 mAh 4S 14.8V 20C |
| Weight : | 7 lbs 3.5 oz (3.28 kg) |
| Servo : | (4) Mini digital - 50 oz.in. torque |
| Wing area : | 777.3 sq. in. (4110 cm 2) |
